Rocker Switch SPOT LIGHTS - Blue - LED 4x4 Boat Caravan Marine 12v


Rocker Switch SPOT LIGHTS - Blue - LED 4x4 Boat Caravan Marine 12v

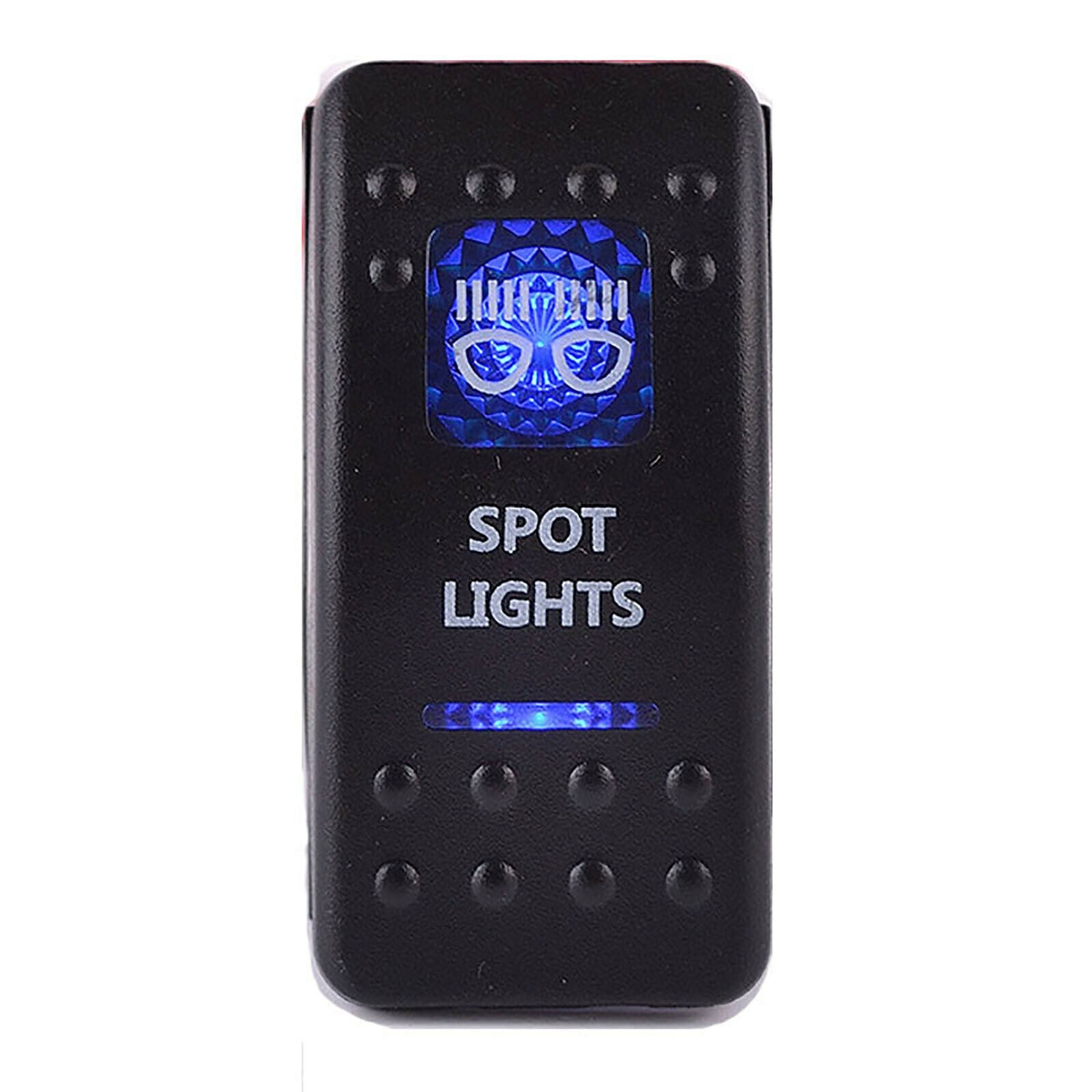

- Switch has Blue LED's and Blue switch cover
- Switch has bright dual led LED's with very low power draw
- Lower LED is illuminated for the "Dash Light" and the larger top LED illuminates when switched "ON"
- Switch is the standard On-Off SPST
- Simple and firm mounting for quick installation that will not rattle while driving
- Switch comes with a waterproof gasket seal for all weather conditions and outdoor installations
- This listing is for 1 LED LIGHT BAR switch. Select multiple quantities if requiring more than 1 switch

Specifications

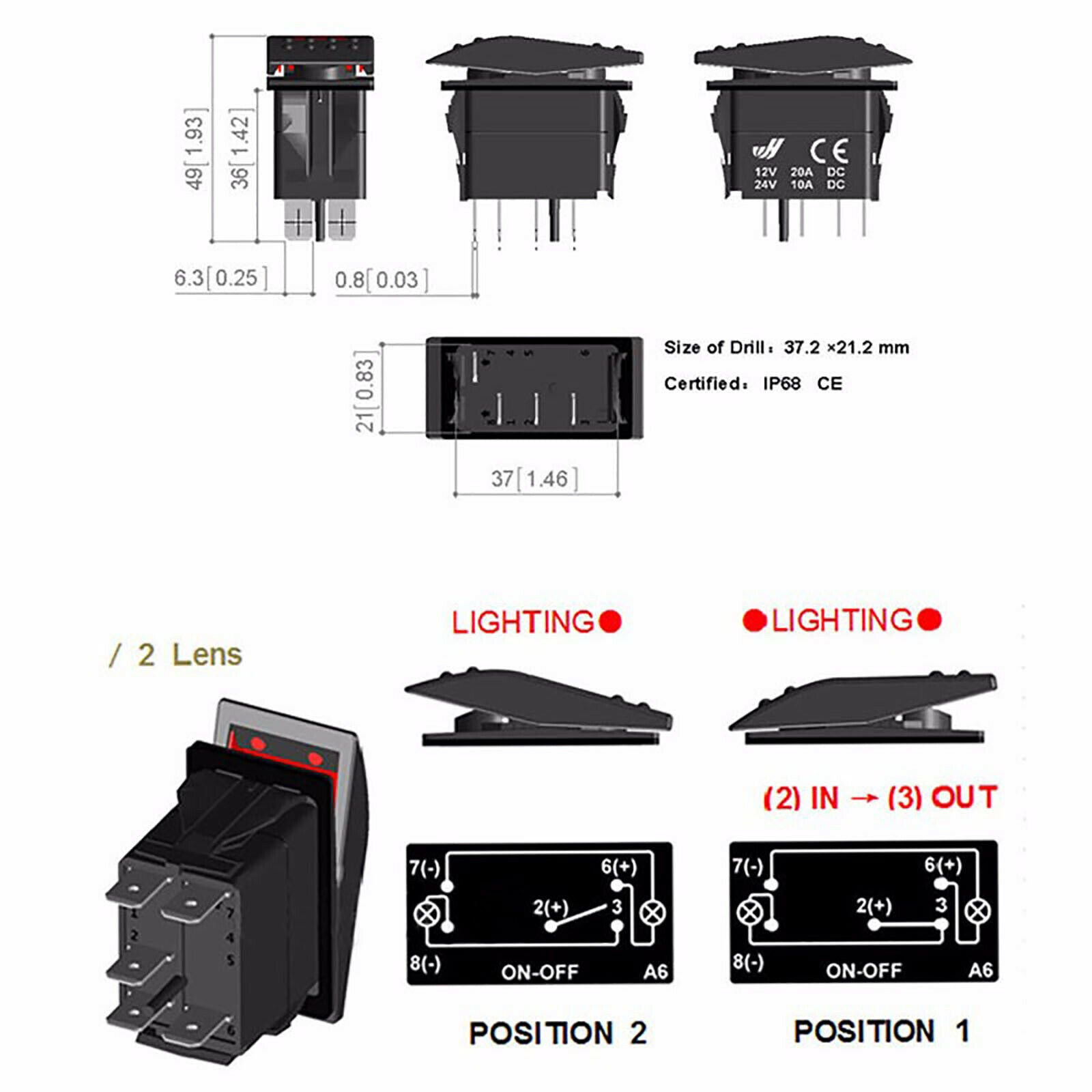

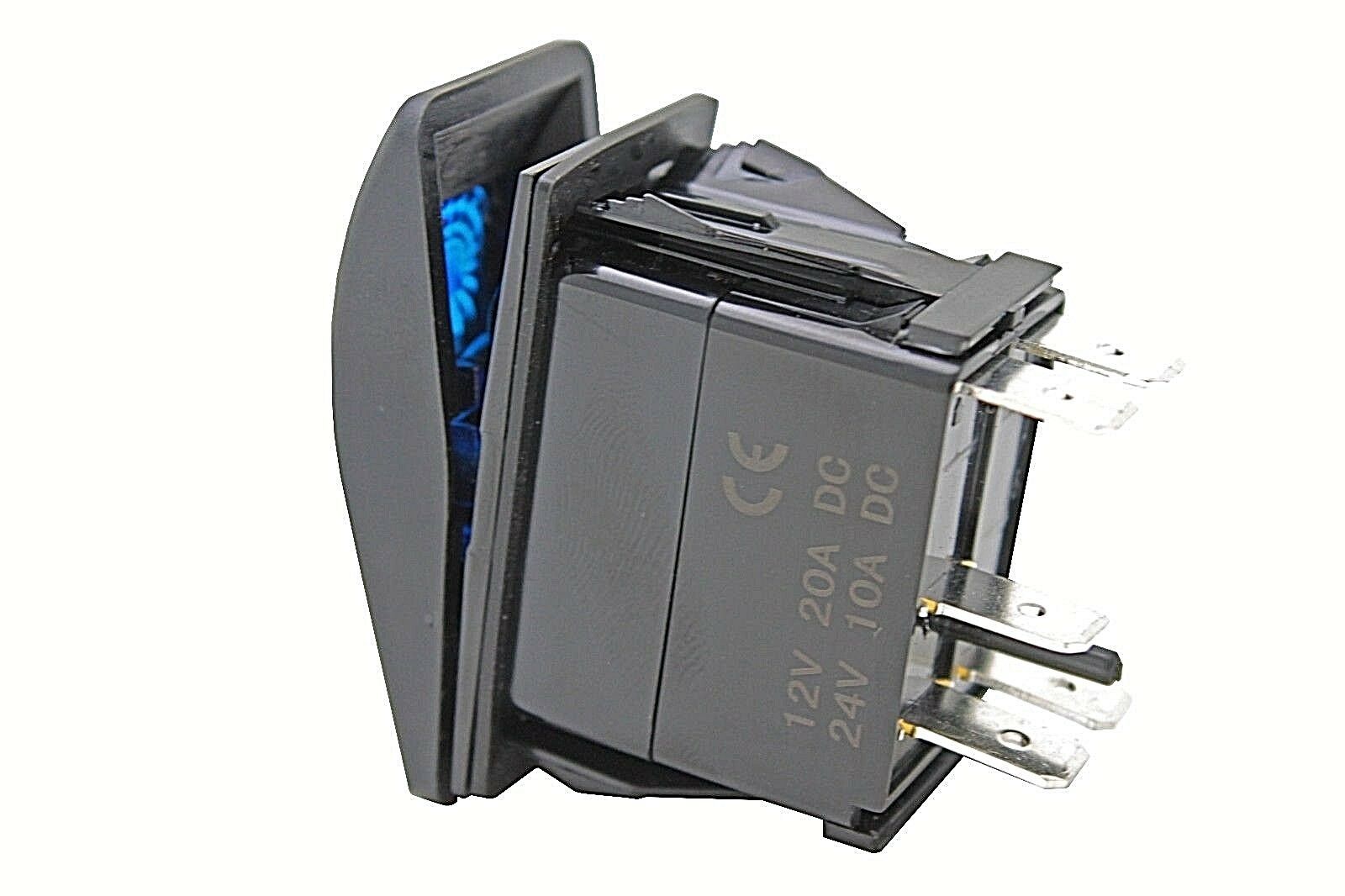

- Size of cut out hole required for mounting switch - 21.5mm x 37.5mm
- Switch face surface size - 49.5mm x 24.5mm
- Voltage: 12v-24v
- Maximum current rating: 10 Amps for 24V - 20 Amps for 12V
- Simple clip in fitment to ensure that switch will not rattle
- Fits a massive range of Vehicle/Boat/4x4 applications!

Wiring is simple

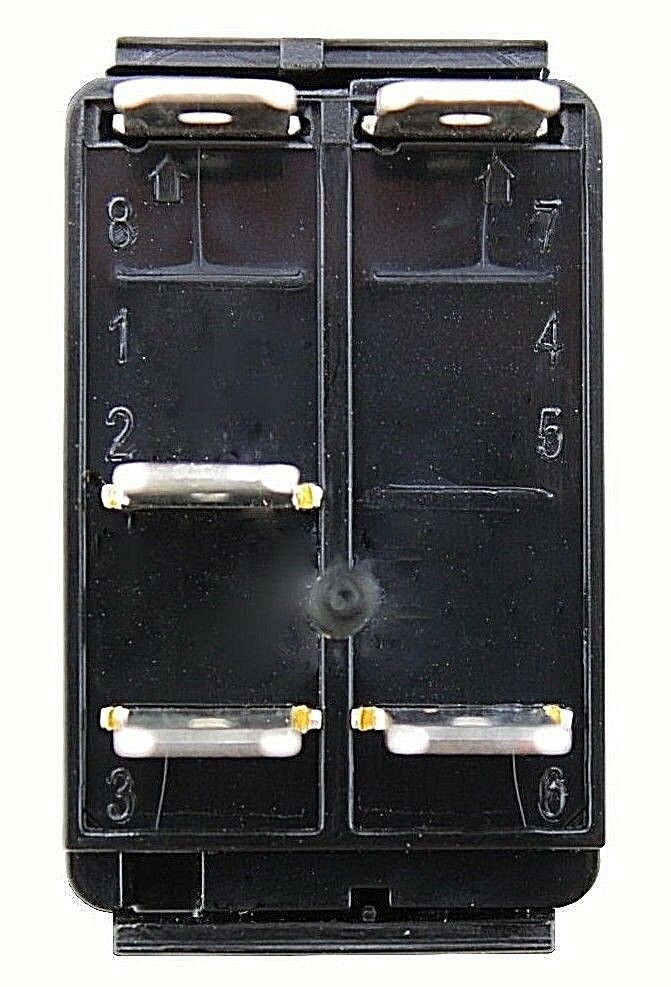

On the rear of the switch there are 5 terminals
#2 - Incoming power from source
#3 - Outgoing (to relay, equipment or accessory - lights winch etc)
#8 - Upper main 'On' light Negative (-)
#7 - Lower "Dash" light Negative (-)
#6 - Lower "Dash" Light Positive (+)

For "dash" light to remain on: Connect positive (+) to #6
For Main switch and "On": Connect Positive (+) to #2, Negative (-) to #8 and Accessory to #3
