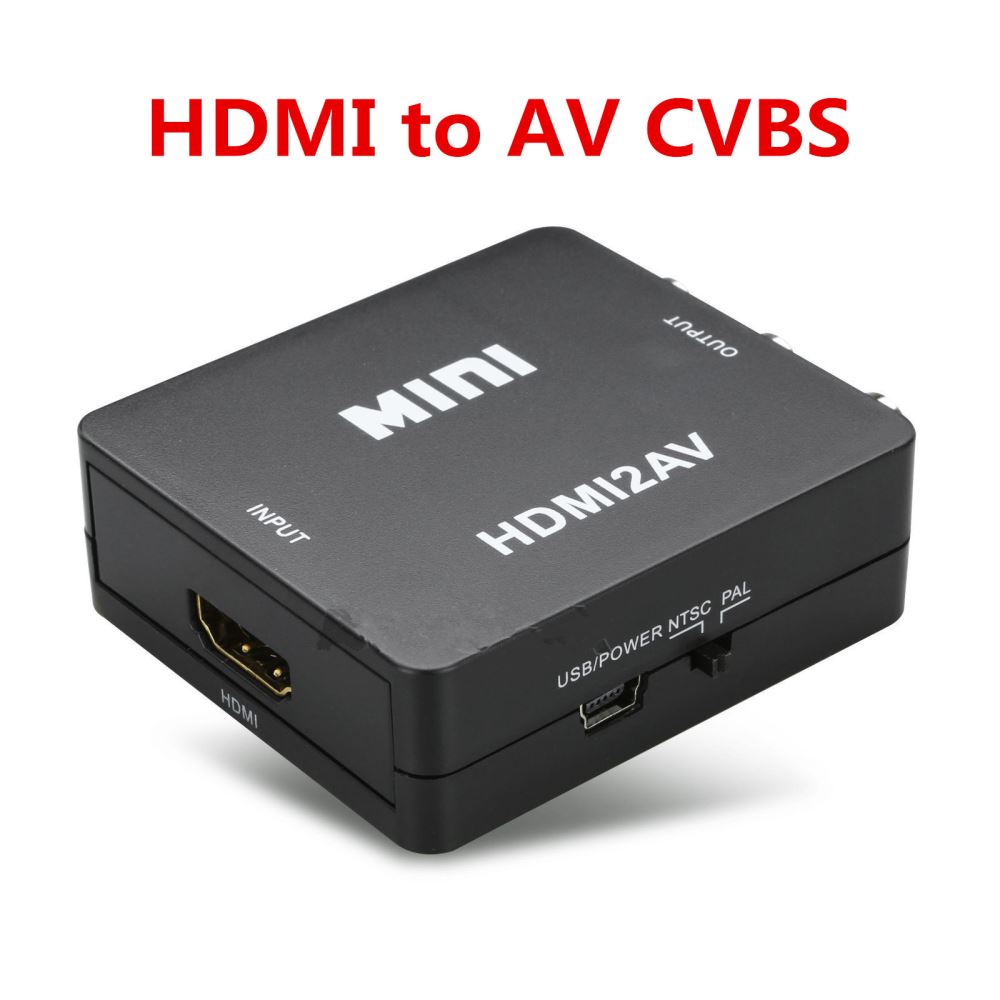

HDMI to RCA AV CVBS 3RCA Video Converter Adapter

HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog
composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone,
Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT
TV, RPTV and projectors.

Description
- Support HDMI Input from Up to 1080p (Does Not Support 3D)
- HDMI Input, Composite Video + Audio R/L Output (Does Not Support Reverse Way)
- Supports NTSC and PAL Two Standard TV Formats with a Select Switch
- Hardware Conversion , Plug and Play without Any Software Driver
- Signals through the HDMI High-definition Video Processing Downscale to 576i, 480i (PAL / NTSC) Video Signal Output
- With Advanced Video Processing Chip, for Better Compatibility and Image Quality
- Self-powered By HDMI Port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)

Specifications
Compatible with HDMI 1.3
Support NTSC and PAL Two Standard TV Formats
Inputs: HDMI x 1
Outputs: AV x 1; L / R x 1
HDMI Input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS Output: 480i, 576i
Dimensions : 55mm(W)x66mm(D)x 20mm(H)
PAL and NTSC Standard Format Selector Switch

Package Included:
1x HDMI to AV Converter
1 x USB Cable
