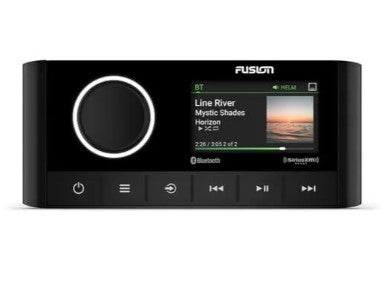

FUSION APOLLO RA670 MARINE ENTERTAINMENT SYSTEM WITH DSP

DESIGNED AND ENGINEERED TO TRUE-MARINEª STANDARDS
Built on the True-Marine design philosophy from Fusion¨, the Apollo RA670 stereo has an IPX6 and IPX7 rated water-resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.

Physical dimensions Stereo dimensions (H x W x D): 68 x 157 x 123 mm
Weight 750 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0¡ to 50¡ C
Current (max.) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range 10 metres
ANT wireless range 3 metres
Wireless frequencies/protocols
Bluetooth 2.4 GHz @ +13.29 dBm nominal
ANT 2.4 GHz @ +6.92 dBm nominal
Compass-safe distance 200 mm

Display 2.7-inch optically bonded colour LCD
Built-in amplifier Class-D (2 Ohm stereo-stable)
Peak power 280 W

Rated power output (2 Ohm) 43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD

Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
PartyBusª-Network capabilities Yes (wired)
Fusion-Linkª control Yes (with MFD, smartphone and Garmin watch)
Multi-Zoneª technology 3 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
SiriusXM-ready Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready Yes (requires DAB100A antenna module)
Optical audio input Yes
NRX remote compatibility Yes
Software updates Over-the-air software updates via the Fusion-Link app*, USB

Sources AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)
