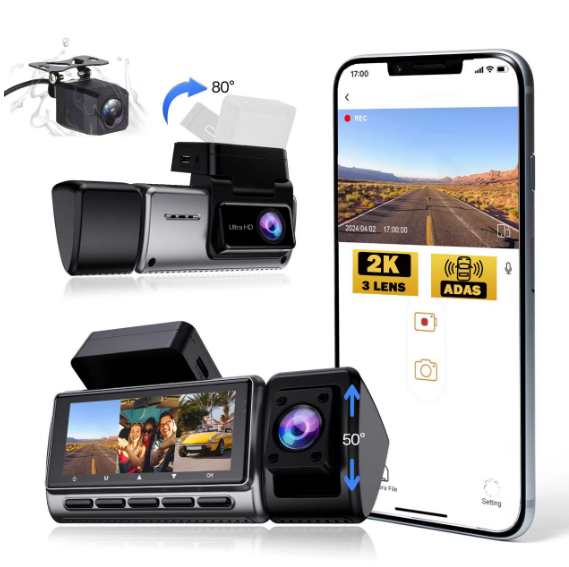

This product adopts high performance chipsetto provide high defnition vide.with seamless motion picture and Rohssupports FHD 1080P and 2K QHD video recording. Please read this manual carefullybefore use and keep itin a safe place.
Menu 1. Short press to open menu 2. Long press to enter into playback mode
UP 1. In System setting mode, short press to switch the settings 2. In video mode, short press to switch the lens real-time view 3. In playback mode, short press to choose the file which you want to playback 4. Long press to turn on / off WIFI
Down 1. in System setting mode, short press to switch the settings 2. in playback mode, short press to choose the file which you want to playback 3. In video mode, short press to turn on /off audio

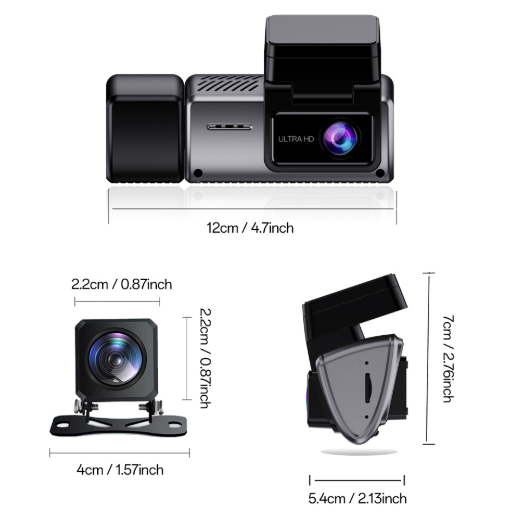

Function interface Recording video System setting Smart Driving : ADAS、BSD、LCA Resolution : 2K、1080P Recording Mode 3 Recording Video Resolution: 2160*1440P@30fps+ 1920*1080P@30fps+ 1920*1080P@30fps Photo Resolution: VGA/1M/2M/3M/5M Video Format: TS Picture Format: JPEG Audio Format: PCM(0X1)-PCM Camera: Sensor Chip SC2336 Lens: 2G+2P (lens + IR filter) Aperture F=1.8 Viewing Angle D:124° H:105° V:56° WIF Function: Support 2.4G Display Size: 3.16 "IPS HD Screen Maximum Power Consumption: 560mA(5V) Power Supply and Charging Device: Input 12-24V, Output 5V/1.5A, TYPE-C, Cable length 3.5M, No load above 5.4M. Power supply and charging device: Input 12-24V, output 5V/1.5A, TYPE-C, cable length 3.5M, no-load not higher than 5.4V, load 4.6-5.2V Language: English/French/Spanish/Germany/Italian/Russia/Japanese/Chinese Dimensions: 118x68.5x46.6mm
Note: Formatting will delete all the files (including locked files) in the memory cardafter formatting , the files will not be recoverable, please copy importantfilesbefore format.

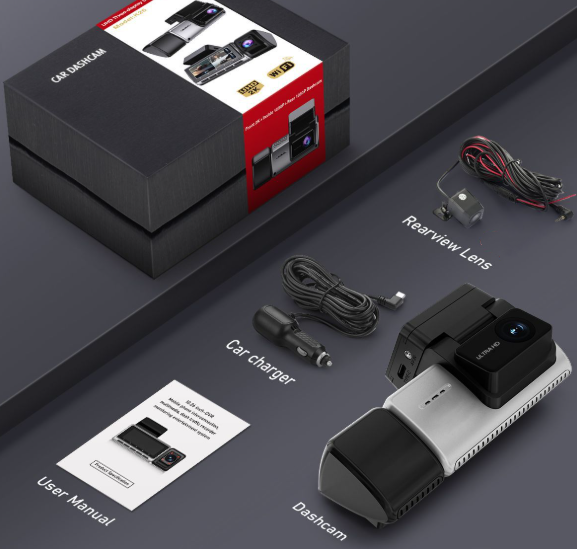

Package included: 1x Dashcam 1x Rearviewlens 1x Car charger 1x User Manual
