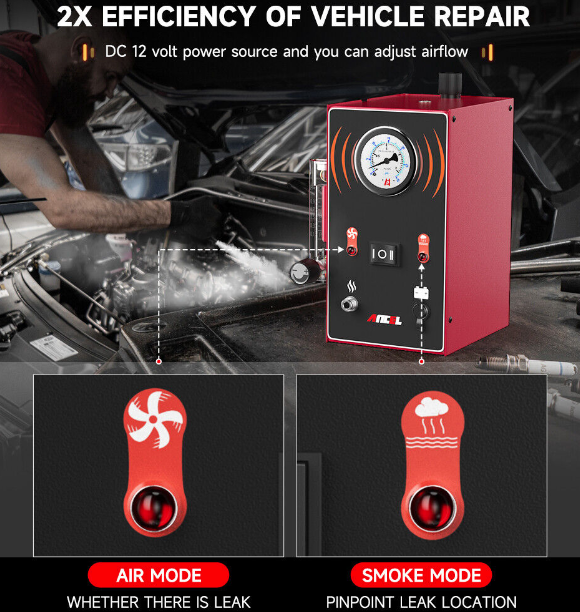

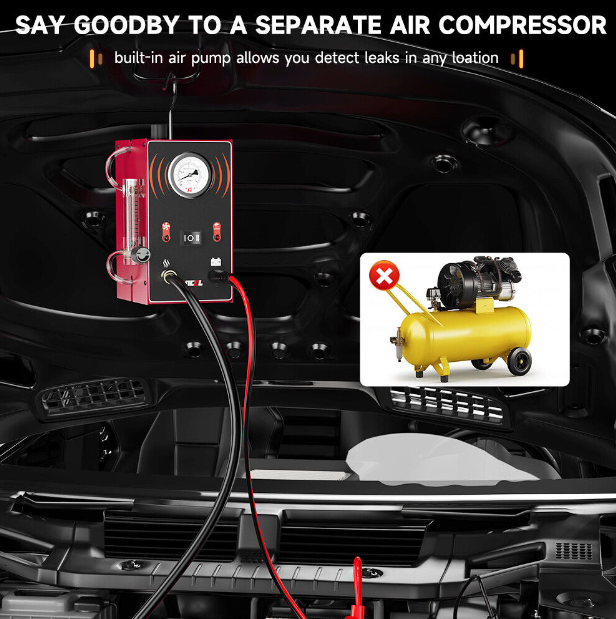

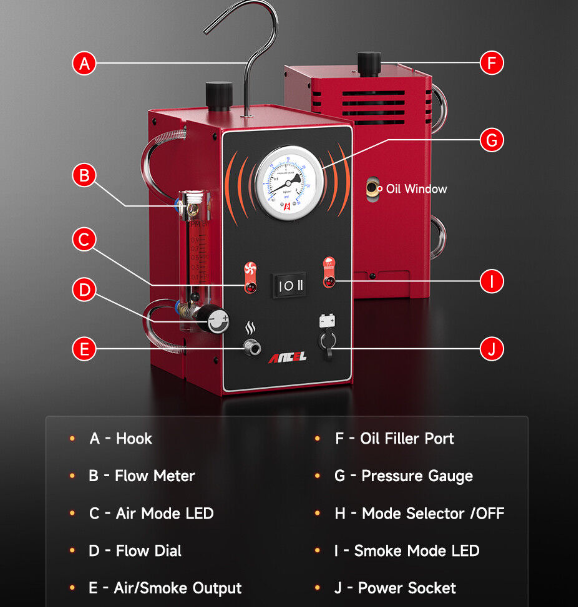

Ancel S300 Advanced Features BUILT IN AIR PUMP: No air compressor needed. Just connect staright to your vehicle's 12V battery and generate smoke in seconds! Build in Pressure gauge: to monitor total sytem pressure . Smoke mode to introduce smoke into vehicle system for leak detection. Adjustable Flow Meter: Air Flow meter with ajustable button, easy to control the smoke effect(output flow:<7L/Min) Portable & easy to use
Specifications Power source: 12V fully charged vehicle battery Current: 6A Flow rate: < 7 LPM Pressure output: 0.8~1.0 bar
Warning !!! - Operator shall have basic knowledge about structure of vehicle and the engine. Vehicle service book is required. - To ensure better test result, it’s required there’s no wind in the operating area. - Do NOT use the product on smoke sensitive component. Eg. Smoke residual might reduce sharpness of head lights if apply to head light housing. - ONLY low density mineral oil based fluid is allowed to use as smoke oil. Johnson&johnson’s baby oil(pink label) is compatible. Use funnel to avoid spread the oil to other parts of the unit. - Check oil level before use, if oil level is lower than the middle of the gauge, the unit would need a refill, but do not overfill the unit beyond the gauge. - The product is only allowed to use while ignition’s off. Be sure to use 12V vehible battery, and the battery shall be full charged and voltage not lower than 12V. - Use bright light torch/ halogen light to help find the leaks. Wear goggles if available
