This product uses high-performance chips to provide high-definition video and seamless dynamic pictures. Support FHD1080P true full HD camera. Please read this manual carefully and keep it properly before use.
Backup Camera Hard Wired Backup Camera 7'' Quad Split Screen HD Rear Backup Camera Monitor System, Night Vision Backup Camera for Trucks,Trailer Heavy,Box,RV,Camper Bus Rearview Camera
Screen size: 7 Inches Compatible devices: Monitor Display technology: LED

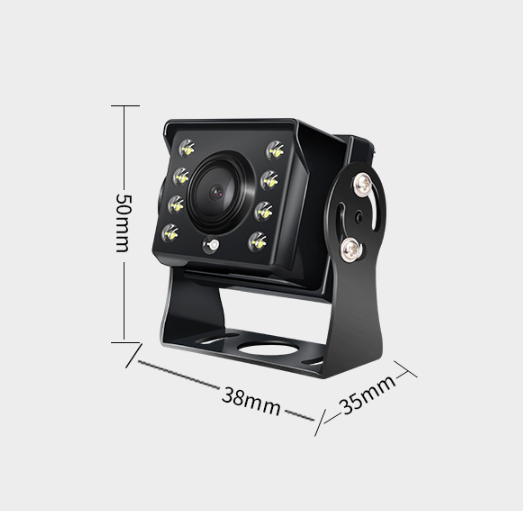

Camera Parameters Image Sensor: 1/2.9" CMOS Resolution: 1080p(1920*1080) Minimum illumination: 0.1Lux@(AGC ON),0Lux with IR F/NO: 2.4 Day/Night Mode: Color Video connector: 4pin aviation connector (female) Rated Operating Current: 65mA Video System: PAL/NTSC Effective Pixel: 1MP Lens: 4G Lens Focal Length: 2.8mm Video Signal: AHD Nominal Operating Voltage: 12V DC

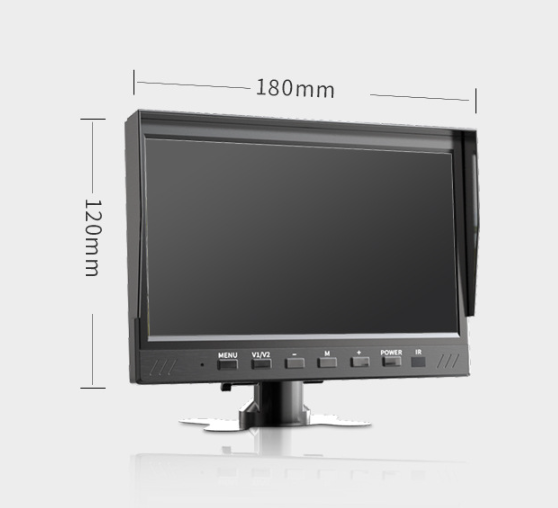

Display Parameters Size: 7 inches Power Supply: DC12V-24V Resolution: 1024x600 Power: Approx. 7W Contrast ratio: 350:1 Operating temperature: -20°-70 Signal Format: PAL/NTSC Response time: less than 12ms Brightness: 500 Language: 15 languages Display Area: 7 inches diagonal Mounting: Stand Input Connector: Airline Head Features: Reverse Priority Display

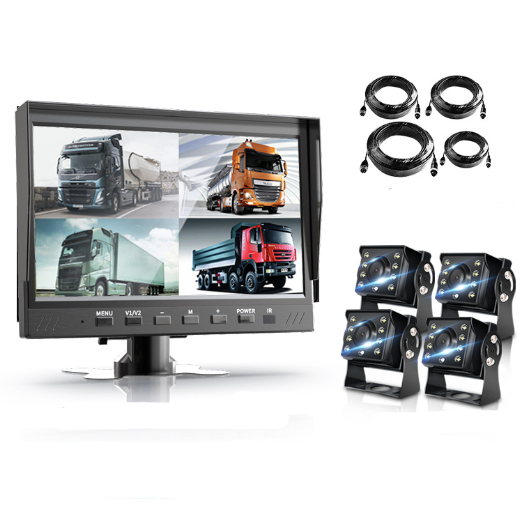

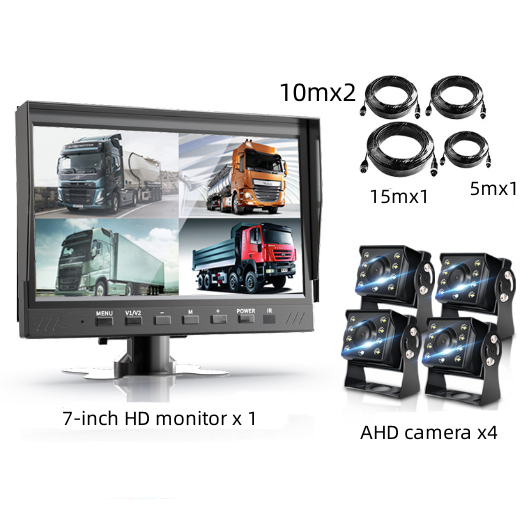

Package included: 1x 7inch Truck Wired Backup Camera Set
