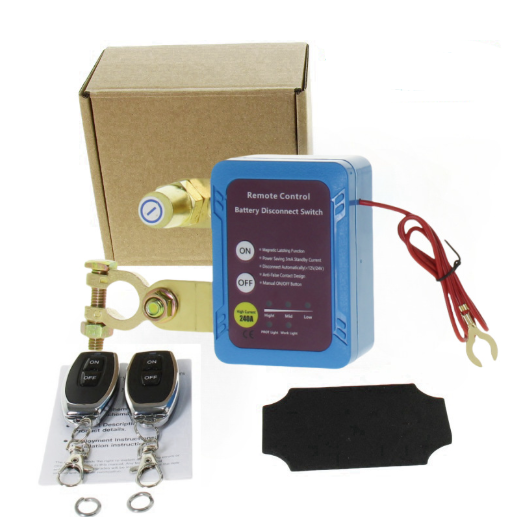

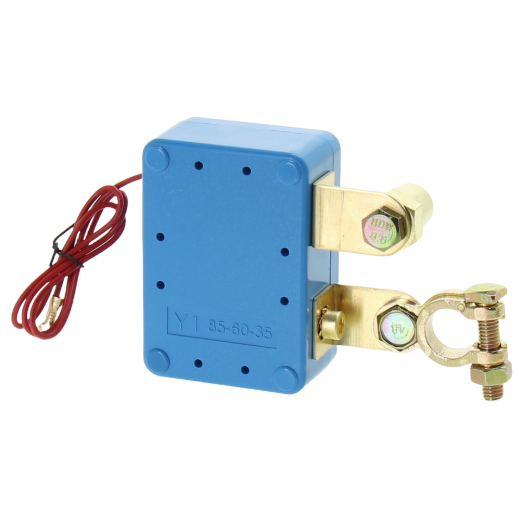

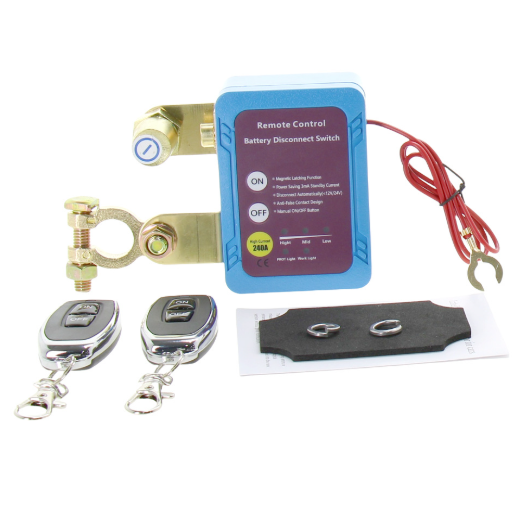

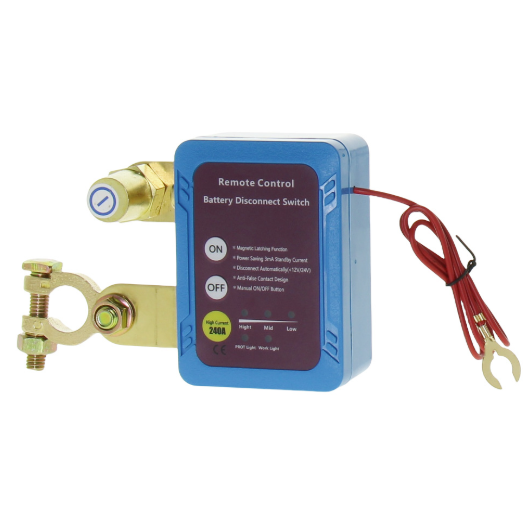

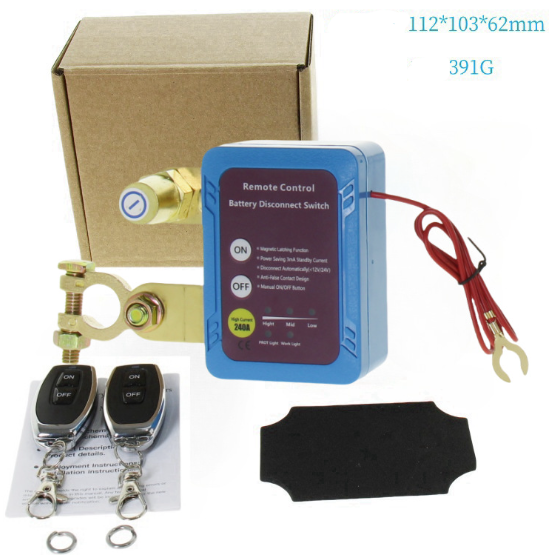

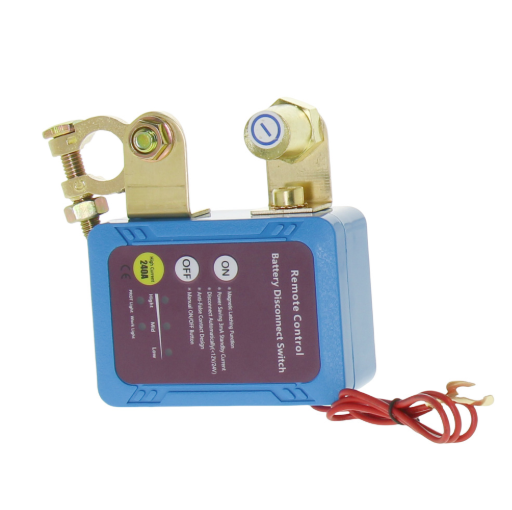

Remote Control Battery Disconnect Switch Intelligent Battery Protector for Cars
Product Specifications: 1. Operating Voltage Range: DC 6V-18V/DC 19V-30V. 2. Self-adapts to both 12V vehicle system and 24V vehicle system. 3. Automatic power-off voltage point is 11.8V+0.25V or lowel(for 12V vehicle system). Automatic power-off voltage point is23V+0 25V or lower (for 24V vehicle system) 4. Remote control failure voltage range: For 12V vehicle systembattery voltage is below 11.8V+0.25V or above 13 3V+0 25VFor 24V vehicle system, battery voltage is below 23.2V or above 26.3V. 5.Frequency 433MHz, femote controi matched. 6, indicator light shows (light on when connected, light off when disconneced). 7. Protection against accidentat triggering during driving and ignition.
Product Parameters: 1. Operating Temperature: -22°F to 194°F. 2. Curent Rating: 240A 3. Instantaneous Curent: 500A 4. Under Voltage Protection Threshold: 11.8V+0.25V/23V+0,25V 5. Under Voltage Delay: Alarm after 60 seconds and automatic disconnection after 120 seconds. 6. Standby Power Consumption: 1mA
