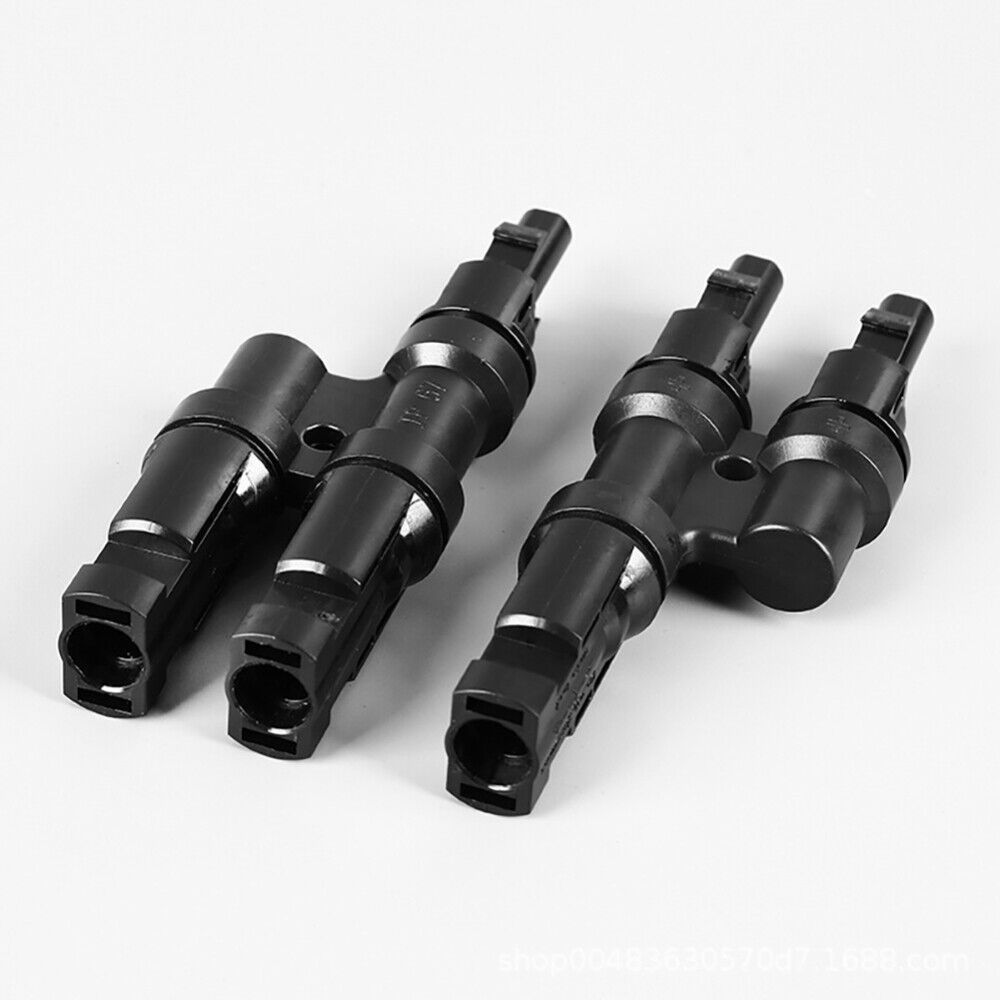

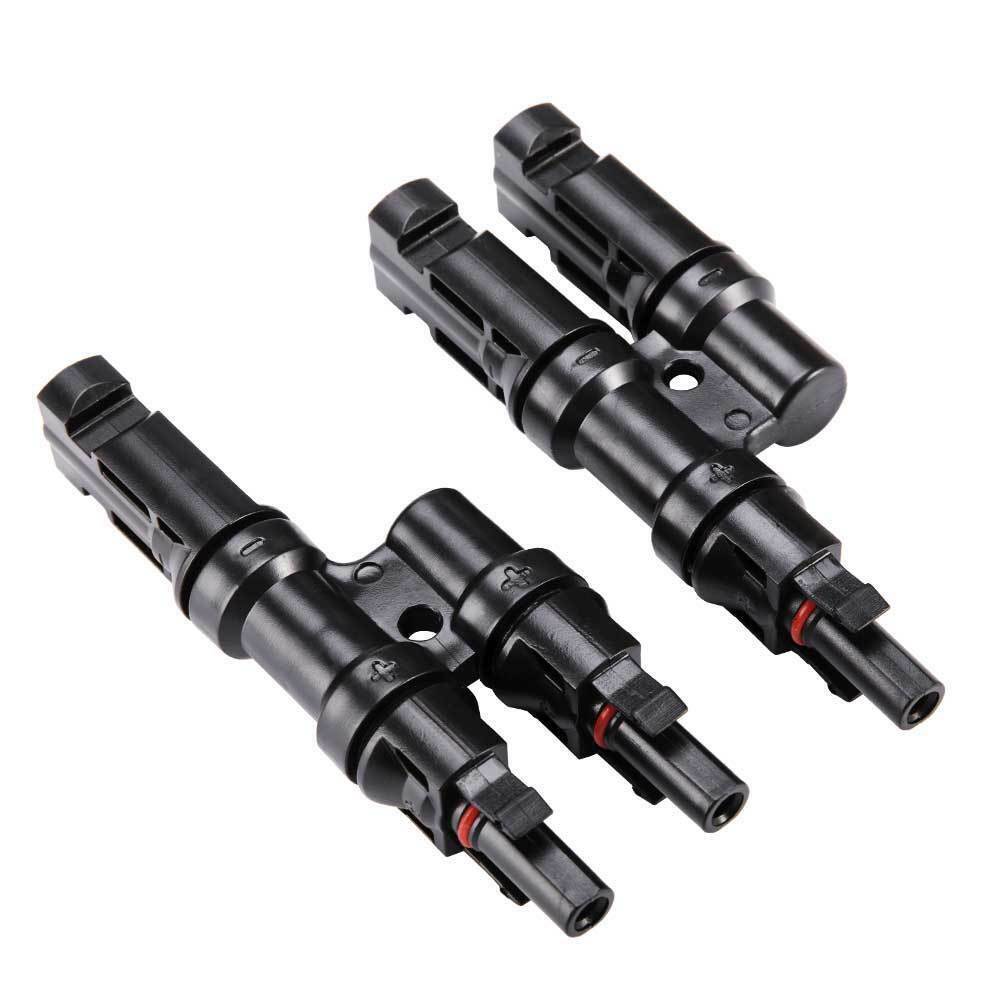

2 To 1 T Branch Cable Connectors Solar PV Panel Connector Male and Female

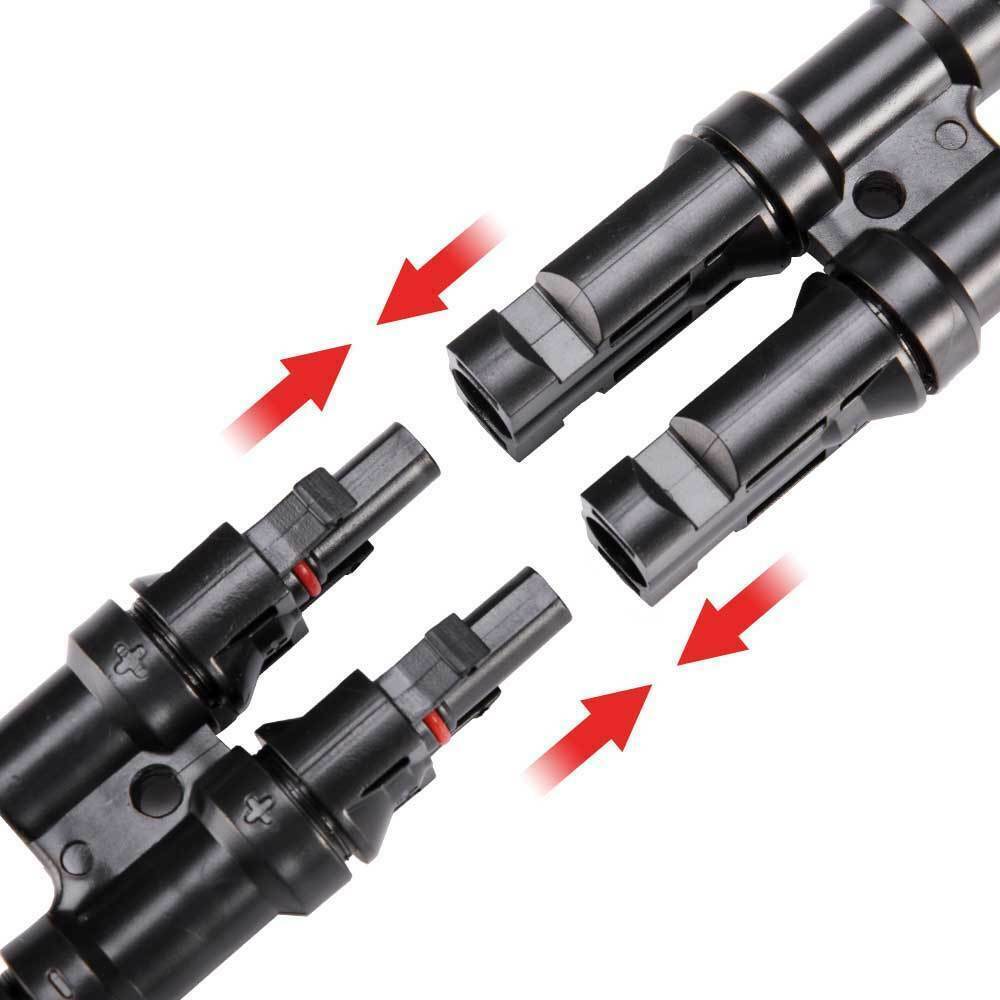

Rated Current:22(2.5 mm),30A(4,6 mm) Protection Degree:IP2X,unmated;IP67,mated Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument Compatible with PV cables with different insulation diameters Resistance of extra high & low temperature and fireproof Load capability with big current and high voltage Locking system Snap in

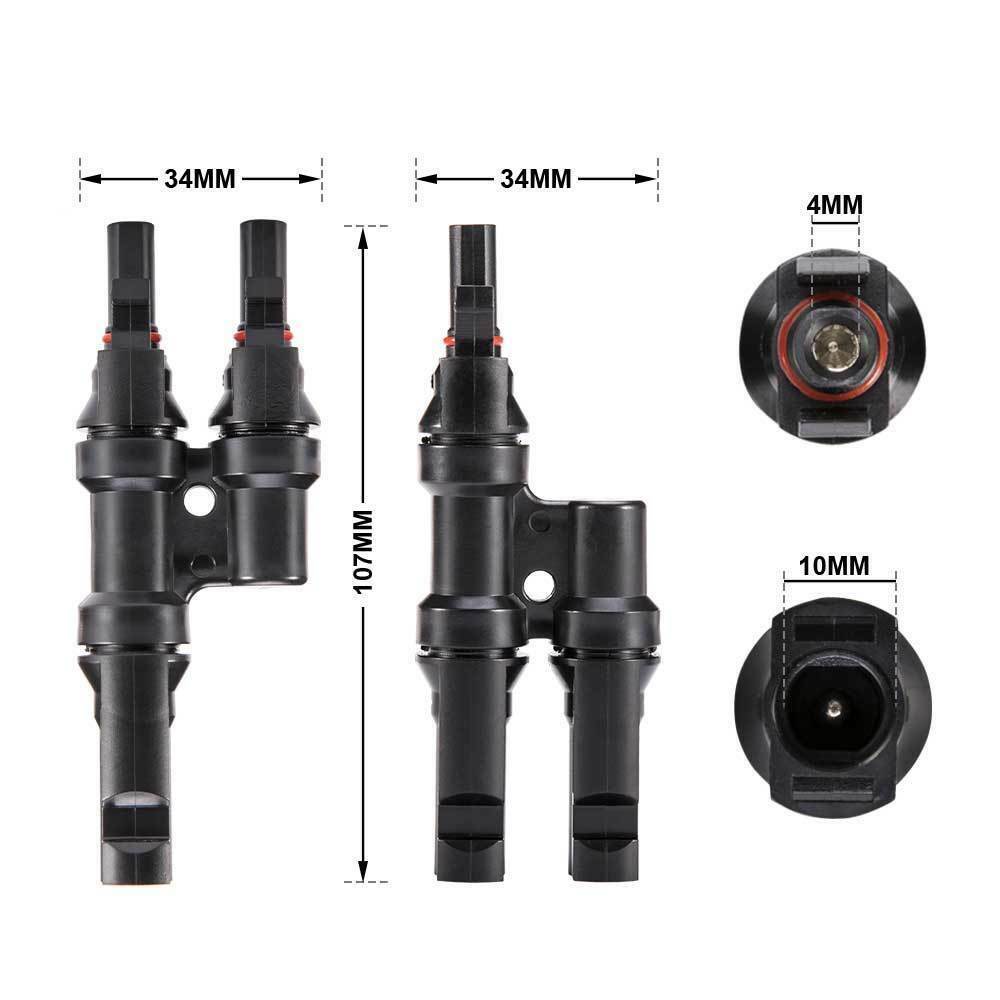

SPECIFICATIONS Rate Voltage: 1000V Rated Current: 30A(4mm2,6mm2) Waterproof Rate: IP 67 Test Voltage: 6KV(50Hz) Insulation Material: PPO Contact Material Copper: Sliver plated Safe Class: 2 Flame Class: UL94-V0 Contact Resistant Of Plugg Connectors: Insertion Force: <50N Diameter Of Pin Or Socket: 4mm Locking System: Snap in Suitable Cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
What's In Box 1x female to double male (F/M/M) 1x male to double female (M/F/F)
