12V 200AMP Continuous Duty Solenoid 4WD 4X4 Universal Winch Start Switch

12V 200AMP Continuous Duty Solenoid 4WD 4X4 Universal Winch Start Switch

Specification:
Dimensions: H65 x D64 x W87
Mounting Bracket: 7mm x 10mm centre to centre 60mm
Contacts: Copper
Coil Rating: 650A make, 100A break
Coil Resistance: 17.5Ohm, 4 Studs
Amperage: 200A
Body Material: Plated Steel Housing
Earth: Insulated
Voltage: 12V



Feature:
Continuous Duty Solenoid SPST 12V 85A
4 stud, Insulated stud earth
SPST Normally open (one circuit) OFF/ON
Copper Stud terminals 5/16″-24
Insulated Coil terminals 10-32

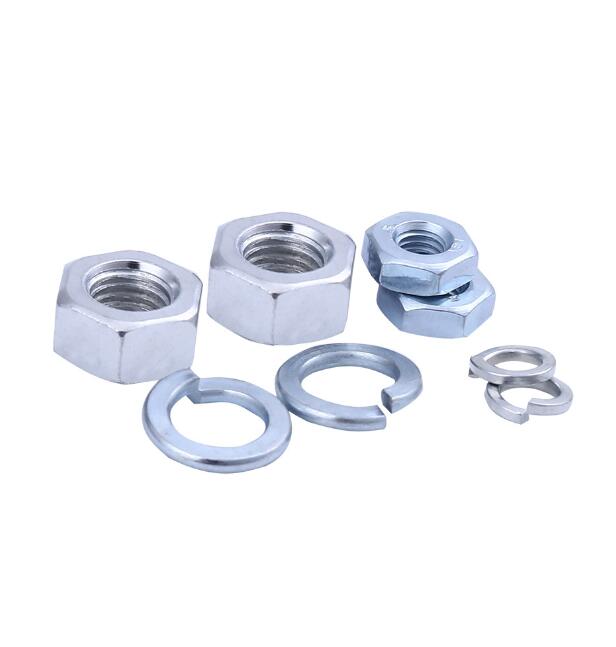

Plated steel housing, nuts & washers Inc.
Mounting holes 8mm x 15mm, 56mm CTC
Mount with brand cap facing DOWN
Int. ratings: 10 sec ON, 30 min OFF

Package List:
1x Continuous Duty Solenoid
