12V 140A Smart Dual Battery System Isolator Box Voltage Sensitive Relay VSR
Principle of use: 1. When the battery current is insufficient, disconnect the laying battery to ensure the charging and working of the main battery first. 2. When the main battery is full, it will automatically charge the auxiliary battery without affecting the power supply of electric equipment. 3. Automatically cut off the connection between the main and auxiliary batteries when not charging without worrying about the lack of power to start the engine.
Type: 12V Voltage Sensitive Relay Continuous current: 80-100A Instantaneous current: 125A Current consumption-charging: 240mA Current Consumption-Standby: 8m Disengagement delay: 5-10 seconds Fuse: 80Amp Power stud: M6 copper screw nut Surge Protection: Built-in Product net weight: 190g

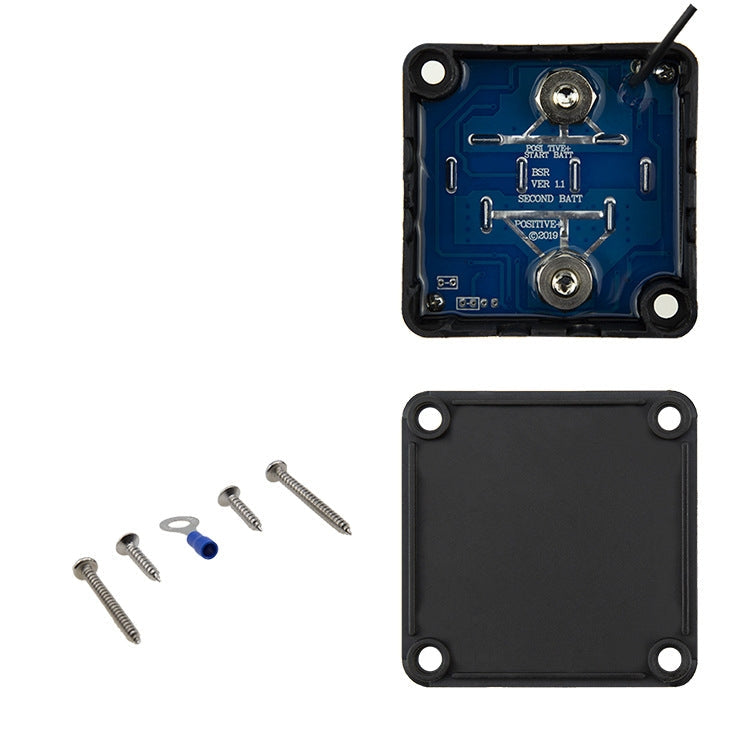

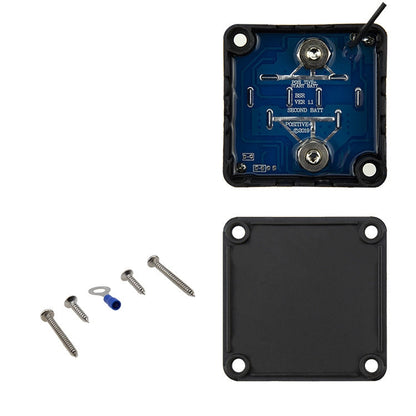

Package Included: 1 x 140A Smart Dual Battery System Isolator Box
