Automatic Roller Door Opener Garage 800N Motor 2x Remote 25m² Rolling
Note: The product does not include weight balancing bar, which needs to be purchased separately by customers.

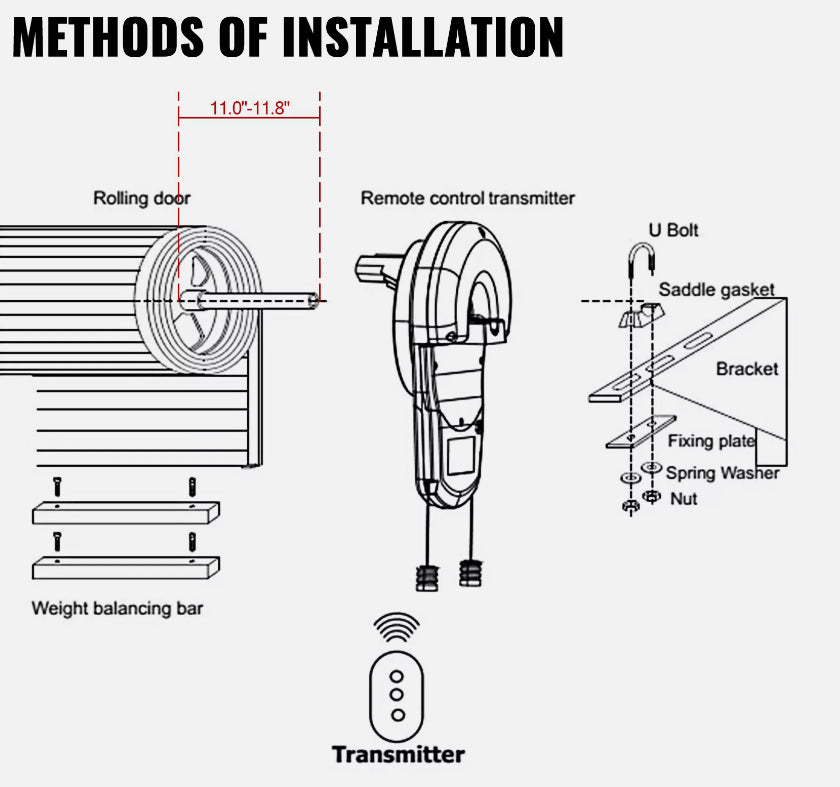

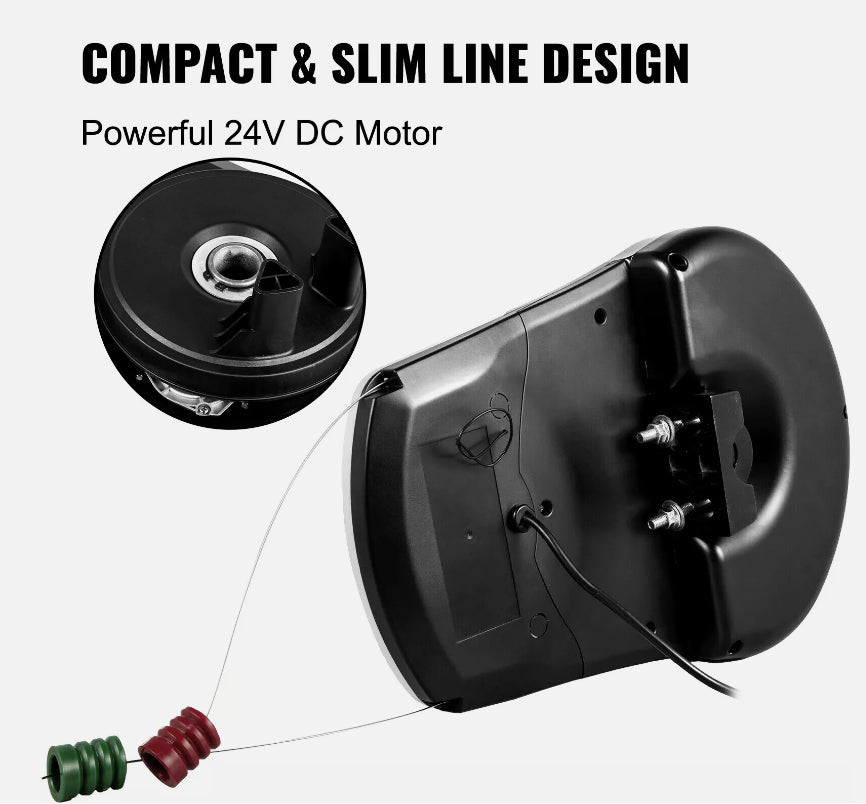

This roller door opener can power up to 16.4ft, 2-door area by a 24V motor, the rolling gate will spin up in no time. It is designed for easy installation with minimal side room and reliable casing. This powerful rolling door opener can power doors up to 270 sq.ft, and the two remotes can enable you to control up to 164 ft/50 m remotely. Security is taken care of by a rolling code technology remote handset that changes with every press of the button. The gate opener is featured with overload protection and obstruction detection for safety. It also has a manual release to open the gate in case of power failure manually. The door opener boasts a whisper quite high power unit and slimline design, compact size for easy installation. Featuring with the low power consumption LED courtesy light, the gate opener will automatically light on when the door is activated. The rolling door opener can be used for all kinds of the roller up doors. The clearance between the door curtain and the outside edge of the mounting bracket calls for a minimum of 11 inches, and the inside edge of the mounting bracket calls for a minimum of 3.3 inches.

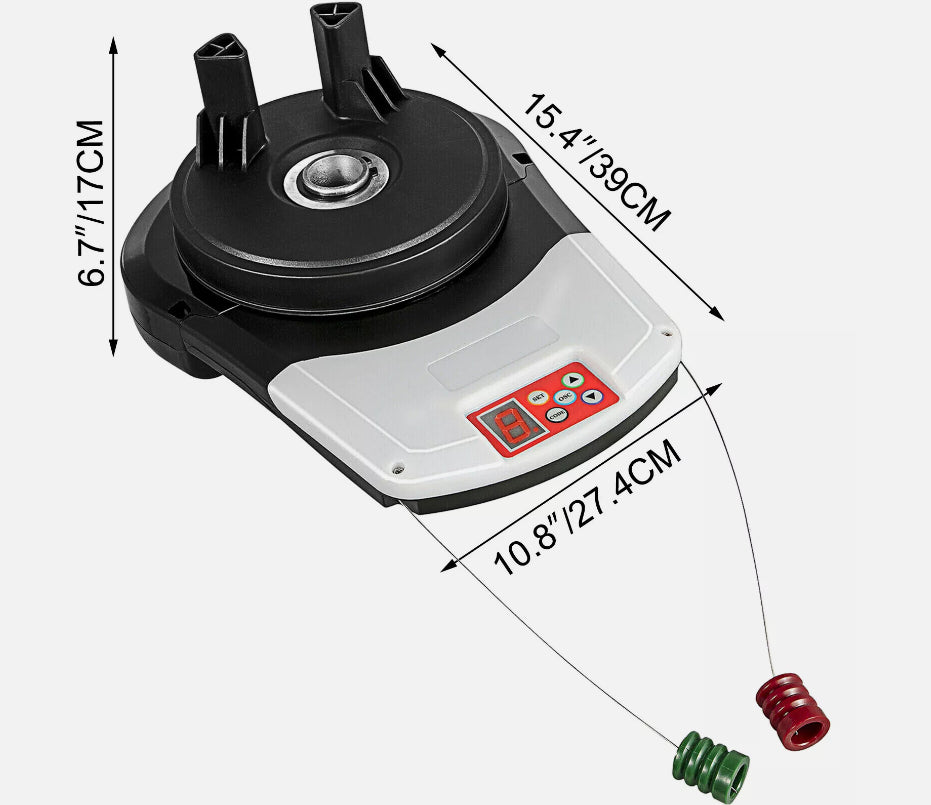

Specifications Input Voltage: 220V AC Motor Power: 100W Opening speed: 0.15-0.2m/s Max lifting weight: 38kg Control Board Voltage: 24V DC / 5V DC Light Globle Voltage: 36V / 1.5W Motor Type: Pure Copper Motor Maximum Door Opening: 25 ㎡ Max. Lift Force: 800 N Maximum Door Height: 5 m Max Control Distance: 50 m Coding Type: Rolling Code Transmitter Frequency: 433.92 MHZ Number of Code Combination: Over 4.29 Billion Random Codes Product Size: 27.4 x 39 x 17 cm

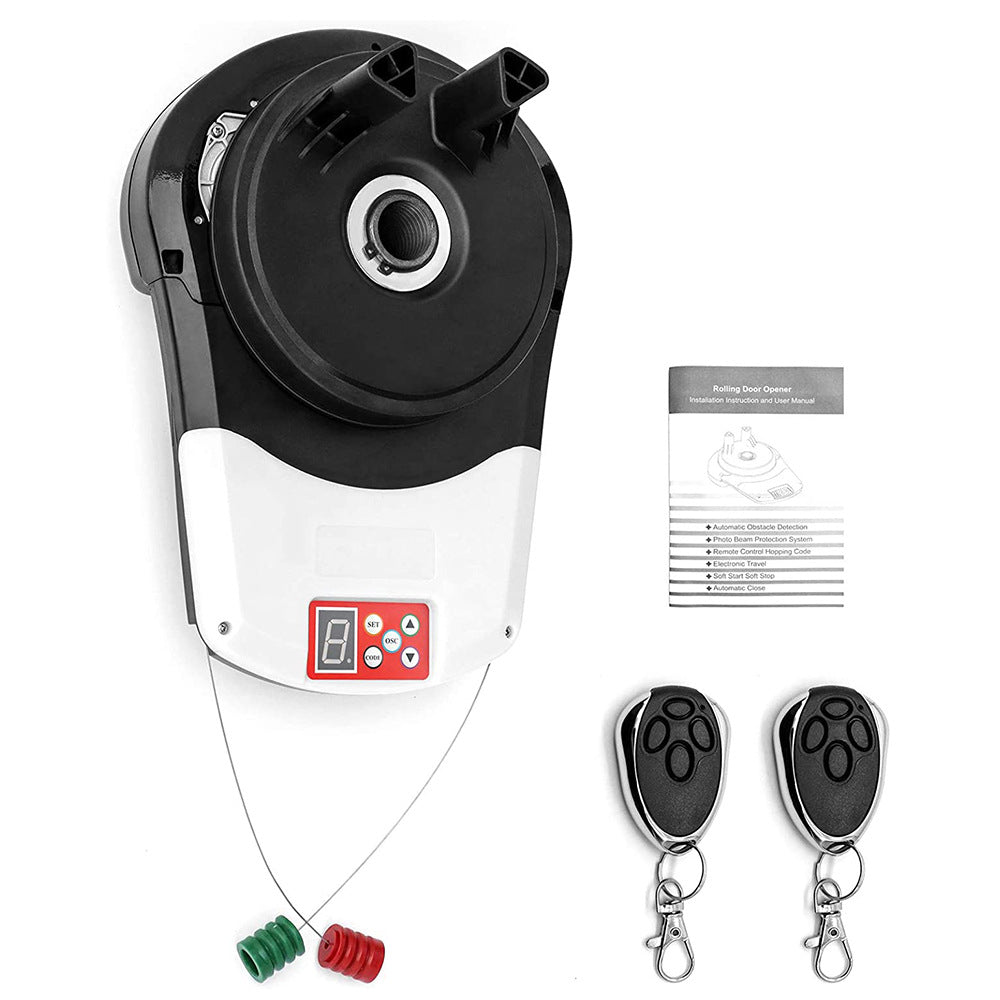

Package Content 1 x Gate Opener 2 x Garage Remote 1 x Instruction Manual
